Dosatron D25RE2IE VF 2,5m³/h 0,2-2%
Dosatron D25RE2IE VF proportional dispenser with external injection for applications with a flow rate up to 2,5m³/h and a dosing range of 0.2 - 2%.
Dosatron D25RE2IE VF 2,5m³/h 0,2-2%
The proportional dispenser Dosatron D25RE2IEVF is very suitable for the precise dosing of liquids. The dosing pump operates without electricity and is driven by the water flowing through it. The motor drives a piston in the dosing adjustment mechanism and in this way feeds the liquid medium to be dosed through. Because of the pure quantity proportional drive, the dosing pump also works very accurately and reliably in case of pressure fluctuations happening. The desired dosage rate can be changed very easily at the dosage adjustment mechanism of the D25RE2.The dosing pump is equipped with an external injection. As a result, the medium is metered in at the outlet of the dosing pump and does not reach the motor area. This makes it possible to dose particularly aggressive media with the Dosatron D25RE2IE.
Technical specifications:
- working range (water flow): 10 l/h - 2.5m³ l/h
- dosing range: 0.2 - 2% / 1: 500-1: 50
- operating water pressure: 0,3 - 6bar
- operating water temperature: 5 - 40 ° C
- pressure loss: 0,3 - 1,4bar
- water connections: 3/4 "external thread
- with external injection
- VF Sealant for acid media
- version with bypass switch (on / off of dosing) and venting
In order to cover the wide range of applications and dosing media, the Dosatron proportional dispensers D25 are also available in other designs and with different sealing- and housing materials. If you would like us to help you with your choice, simply send us the maximum flow rate, the desired dosing rate and the safety data sheet of your medium by e-mail.
Dosing rate: | up to 2% |
---|---|
Execution: | external injection |
Funding volume: | up to 2,5m³/h |
Manufacturer: | Dosatron |
Working pressure: | up to 6bar |
CD100VF - kit dosing part in VF execution
This spare part is used in the Dosatron dosing unit: D25RE2IE
EM004VF - motor sealing kit in VF execution
This spare part is used in the Dosatron proportional dispensers: D25RE1500, D25RE4, D25RE09, D25RE2, D25RE5, D25RE10, D25RE2IE, D25RE5IE, D25RE10IE
M238S - Dosatron motor springs for the D25 series. Attention: 2 springs are required per unit!
This spare part is used in the Dosatron proportional dispensers: D25RE1500, D25RE09, D25RE2, D25RE4, D25RE5, D25RE10, D25RE2IE, D25RE5IE, D25RE10IE
MP004 - Suction part 6 x 9mm
This spare part is used in the Dosatron proportional dispensers: D07RE125, D07RE5, D100R, D200RE, D400RE, D25RE2 (AO, IE)
MP177VF - kit tipping device in VF D25 series
This spare part is used in the Dosatron proportional dispensers: D25RE1500, D25RE09, D25RE2, D25RE4, D25RE5, D25RE10, D25RE2IE, D25RE5IE, D25RE10IE
MP178VF - partial kit carrier exhaust valve in VF for D25 series
This spare part is used in the Dosatron proportional dispensers: D25RE1500, D25RE4, D25RE09, D25RE2, D25RE5, D25RE10, D25RE2IE, D25RE5IE, D25RE10IE
MPDI041 - venting kit complete with venting bellows
This spare part is used in the Dosatron proportional dispensers: D25RE1500, D25RE4, D25RE09, D25RE2, D25RE5, D25RE10, D25RE2IE, D25RE5IE, D25RE10IE
MPDI045 - partial kit bypass for D25 series
This spare part is used in the Dosatron proportional dispensers: D25RE1500, D25RE4, D25RE09, D25RE2, D25RE5, D25RE10, D25RE2IE, D25RE5IE, D25RE10IE
This spare part is used in the Dosatron proportional dispensers: D25RE09, D25RE2
P041 - wall bracket for D25 series
This spare part is used in the Dosatron proportional dispensers of the D25 series
P421 - motor pistons for D25 series
This spare part is used in the Dosatron proportional dispensers of the D25 series
P428 - plunger for D25 series
This spare part is used in the Dosatron proportional dispensers of the D25 series
PJ079 - Lower housing section in blue with sealing
This spare part is used in the Dosatron proportional dispensers: D25RE4, D25RE1500, D25RE09, D25RE2, D25RE5, D25RE10, D25RE2IE, D25RE5IE, D25RE10IE
PJ085VF - case cover in blue with ventilation and seal in VF execution
This spare part is used in the Dosatron proportional dispensers: D25RE4, D25RE1500, D25RE09, D25RE2, D25RE5, D25RE10, D25RE2IE, D25RE5IE, D25RE10IE
PJ092VF - kit valve and ribbed end piece in VF execution
This spare part is used in the Dosatron proportional dispensers: D07RE5, D07RE125, D25RE2, D25RE2IE, D25RE4, D25RE2A0
This spare part is used in the Dosatron dosing unit: D25RE2

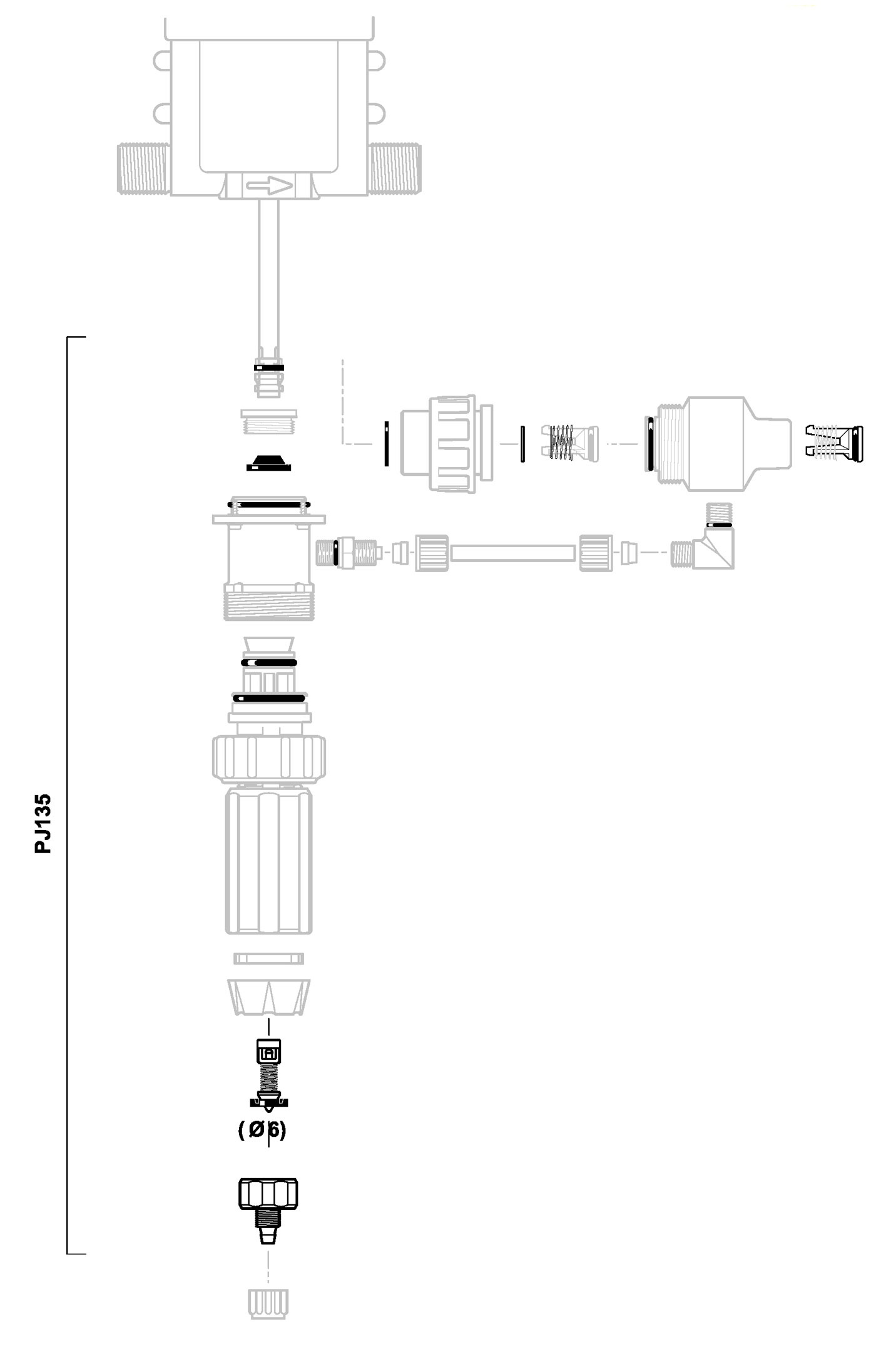

PJ135VF - kit dosing seals + valve + ribbed end piece in VF for D25RE2IE
This spare part is used in the Dosatron proportional dispenser: D25RE2IE
