Dosatron D3IL10 VVF 3,0m³/h 1-10%
Dosatron D3IL10 VVF 3,0m³/h 1-10%
The proportional doser Dosatron D3IL10VVF is highly suitable for the precise dosing of liquids. This doser operates without electricity, powered solely by the flow of water. The motor drives a piston in the dosing adjustment system, thereby drawing the medium to be dosed into the device. Inside the doser, it mixes with the flowing water. Due to the purely flow-proportional operation, the doser works very precisely and reliably, even with pressure fluctuations. The desired dosing rate can be easily adjusted on the dosing adjustment system of the D3IL10.
With an enlarged suction area (viscosity kit), this doser is particularly suitable for dosing oils and cooling lubricants.
The D3IL10VVF doser is designed for flow rates ranging from 10 l/h to a maximum of 3 m³/h. Within this working range, liquid media can be dosed at a ratio of 1-10%. The permissible system pressure is 0.3-6 bar.
This model is the successor to the D3RE10 VVF, which is no longer produced by Dosatron.
Technical Data:
- Working range (water flow): 10 l/h - 3 m³/h
- Dosing range: 1 - 10%
- Operating water pressure: 0.5 - 6 bar
- Operating water temperature: 5 - 40°C
- Pressure loss: 0.2 - 2.3 bar
- Water connections: 3/4" male thread
- 2.75 m suction hose (20x27 mm) with filter
- VF sealing material for acidic media (please send us the safety data sheet of the medium for clarification of compatibility)
- Includes viscosity kit
To cover the broad range of applications and dosing media, the Dosatron dosers of the D3 series are also available in other versions and materials. We are happy to assist you in selecting the proportional doser that best meets your needs.
Manufacturer: Dosatron International S.A.S., Rue Pascal – B.P. 6, 33370 Tresses - France, info@dosatron.com
| Application: | metal processing |
|---|---|
| Dosing rate: | up to 10% |
| Funding volume: | up to 3m³/h |
| Manufacturer: | Dosatron |
| Manufacturer number: | D3RE10 VVF |
| Working pressure: | up to 6bar |

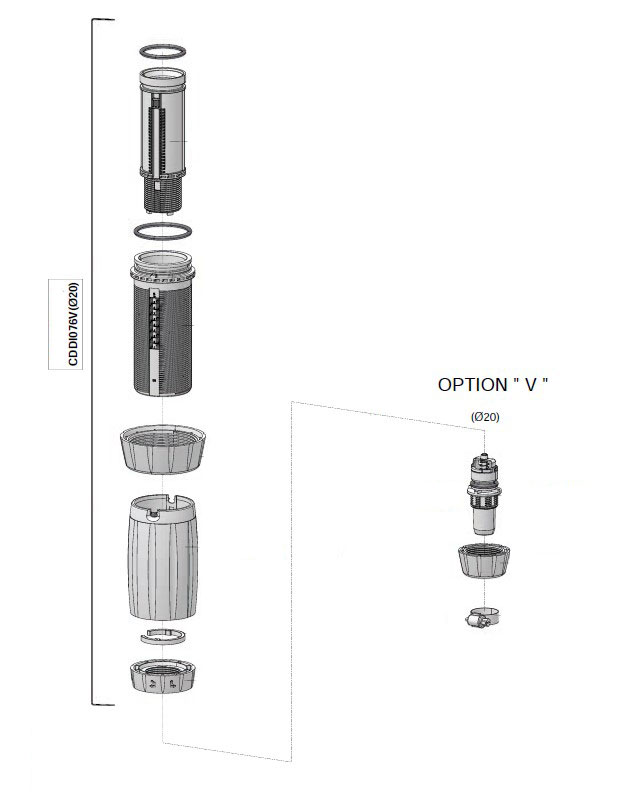

CDDI076VVF - kit dosing part in VF execution
This spare part is used in the Dosatron dosing unit: D3RE10VVF
EMDI006VF - Motor sealing kit in VF execution
This spare part is used in the Dosatron proportional dispensers: D3RE3000, D3RE2, D3RE5, D3RE10 , D3RE25
JDI001 - o-ring housing seal
This spare part is used in the Dosatron proportional dispensers: D3RE3000, D3RE2, D3RE5, D3RE10 und D3RE25
MPDI013 - suction part 20 x 27mm
This spare part is used in the Dosatron proportional dispensers: D3RE10V, D3RE25IE, D8R150, D45RE8, D45RE8IE,D25RE5, D25RE10, D8RE5, D9RE5
MPDI184 - partial kit bypass
This spare part is used in the Dosatron proportional dispensers: D25, D3, D8RE and D9RE
MPDI186 - partial kit upper pump housing + vent + seal D3 series
This spare part is used in the Dosatron proportional dispensers: D3RE3000, D3RE2, D3RE5, D3RE10, D3RE25
MPDI189 - suction part 16 x 22mm
This spare part is used in the Dosatron proportional dispensers: D3RE5V, D3RE10, D8RE2
MPDI196 - complete assembly set by-pass
This spare part is used in the Dosatron proportional dispensers: D3, D8 and D9 series
PCDI030VF - subassembly motor Dosatron in VF for D3 series
This spare part is used in the Dosatron proportional dispensers: D3RE3000, D3RE2, D3RE5, D3RE10 und D3RE25
This spare part is used in the Dosatron proportional dispensers: D3RE3000, D3RE2, D3RE5, D3RE10 , D3RE2
This spare part is used in the Dosatron proportional dispensers: D3RE3000, D3RE2, D3RE5, D3RE10 , D3RE2
PDI700 - partial kit vent protection cap
This spare part is used in the Dosatron proportional dispensers: D3RE3000, D3RE2, D3RE5, D3RE10 , D3RE25
PDI703 - wall bracket for Dosatron D3 series
This spare part is used in the Dosatron proportional dispenser: D3RE3000, D3RE2, D3RE5, D3RE10, D3RE25
This spare part is used in the Dosatron proportional dispensers: D3RE3000, D3RE2, D3RE5, D3RE10 , D3RE25
PDI748 - hose nut
This spare part is used in the Dosatron proportional dispensers: D3RE10 , D3RE25
PJDI113 - Subassembly of lower pump housing with seal and wall bracket
This spare part is used in the Dosatron proportional dispensers: D3RE3000, D3RE2, D3RE5, D3RE10, D3RE25
PJDI118VVF - subassembly kit suction valve in VF execution
This spare part is used in the Dosatron proportional dispensers: D3RE10, D3RE25, D8RE5, D9RE5
This spare part is used in the Dosatron proportional dispenser: D3RE10, D9RE5
This spare part is used in the Dosatron proportional dispenser: D3RE10V, D8RE5, D9RE5
PPDI034 - Kit upper and lower sealing lips of the piston and thermoplastic spring
This spare part is used in the Dosatron proportional dispensers: D3RE3000, D3RE2, D3RE5, D3RE10, D3RE25
