Dosatron D9RE2 VF 9m³/h 0,2-2% with bypass switch
Dosatron D9RE2 VF 9m³/h 0,2-2% with bypass switch
The Dosatron D9RE2VF with bypass switch proportional dispenser is very well suited for the precise dosing of liquids. The dosing unit operates without current and is driven solely by the water flowing through it. The motor drives a piston in the dosing adjustment and in this way conveys the medium to be dosed into the device. Here, mixing takes place with the water flowing through. Due to the purely volume-proportional drive, the dosing unit works very precisely and reliably even with pressure fluctuations. The desired dosing rate can be changed very easily at the dosing adjustment of the D9RE2.The D9RE2VF dosing unit is suitable for a consumption of 500l/h up to a maximum of 9m³/h. In this working range liquid media can be dosed in a ratio of 0,2 - 2%. The permissible system pressure is 0,3 - 8 bar.
The D9 dosing unit is the successor model for the Dosatron D8RE2 and D8R. It has a completely redesigned motor and thus replaces it with improved characteristics.
Technical data:
- working range (water flow): 500 l/h - 9m³/h
- dosing range: 0,2 - 2%
- pperating water pressure: 0,3 - 8bar
- pperating water temperature: 5 - 40°C
- pressure loss: 0,2 - 1,7bar
- water connections: 1 1/2" external thread
- VF sealing material for acidic media
- with bypass switch to switch off the dosing
To cover the wide range of applications and dosing media, the Dosatron D9 series dosing units are also available in other versions and with other materials. We will be happy to assist you in selecting the right proportional dispenser for your needs.
Manufacturer: Dosatron International S.A.S., Rue Pascal – B.P. 6, 33370 Tresses - France, info@dosatron.com
| Dosing rate: | up to 2% |
|---|---|
| Funding volume: | up to 10m³/h |
| Manufacturer: | Dosatron |
| Manufacturer number: | D9RE2 BPVF |
| Working pressure: | up to 8bar |

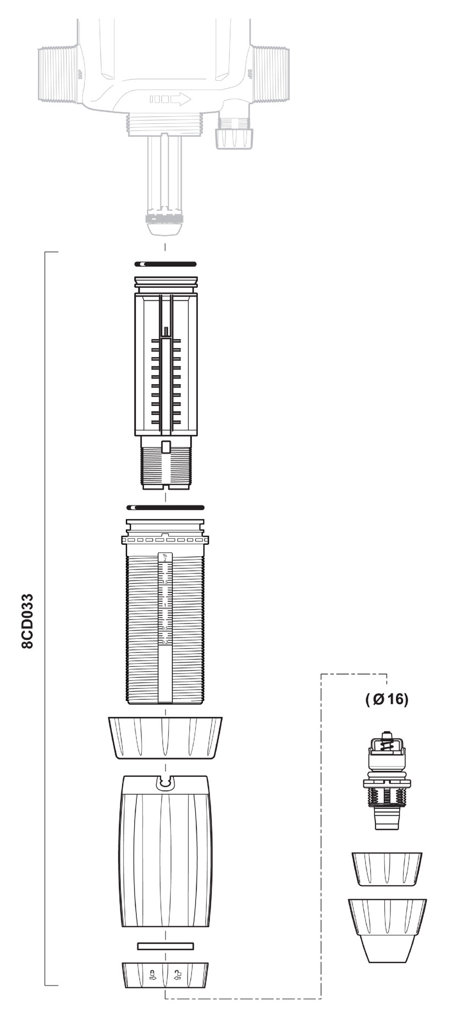

This spare part is used in the Dosatron proportional dispensers: D8RE2 and D9RE2
This spare part is used in the Dosatron proportional dispensers: D8RE2, D8RE5, D8RE3000
EMDI011HT - motor sealing kit in HT execution
This spare part is used in the Dosatron proportional dispensers: D9RE2, D9RE5
MPDI184 - partial kit bypass
This spare part is used in the Dosatron proportional dispensers: D25, D3, D8RE and D9RE
MPDI189 - suction part 16 x 22mm
This spare part is used in the Dosatron proportional dispensers: D3RE5V, D3RE10, D8RE2
MPDI196 - complete assembly set by-pass
This spare part is used in the Dosatron proportional dispensers: D3, D8 and D9 series
This spare part is used in the Dosatron proportional dispensers: D3RE10, D3RE25
PCDI032HT - subassembly motor Dosatron in VF for D9 series
This spare part is used in the Dosatron proportional dispensers: D9GL2, D9GL5, D9RE2 and D9RE5
PDI700 - partial kit vent protection cap
This spare part is used in the Dosatron proportional dispensers: D3RE3000, D3RE2, D3RE5, D3RE10 , D3RE25
This spare part is used in the Dosatron proportional dispensers: D3RE3000, D3RE2, D3RE5, D3RE10 , D3RE25
PDI748 - hose nut
This spare part is used in the Dosatron proportional dispensers: D3RE10 , D3RE25
PJDI118VF - subassembly kit suction valve in VF execution
This spare part is used in the Dosatron proportional dispensers: D3RE5VV, D3RE10, D3RE25IE, D8RE2, D9RE2
This spare part is used in the Dosatron proportional dispenser: D3RE5, D8RE2, D9RE2
PJDI120VVF - kit dosing seals + valve + ribbed end piece in VF
This spare part is used in the Dosatron proportional dispenser: D3, D25RE10
